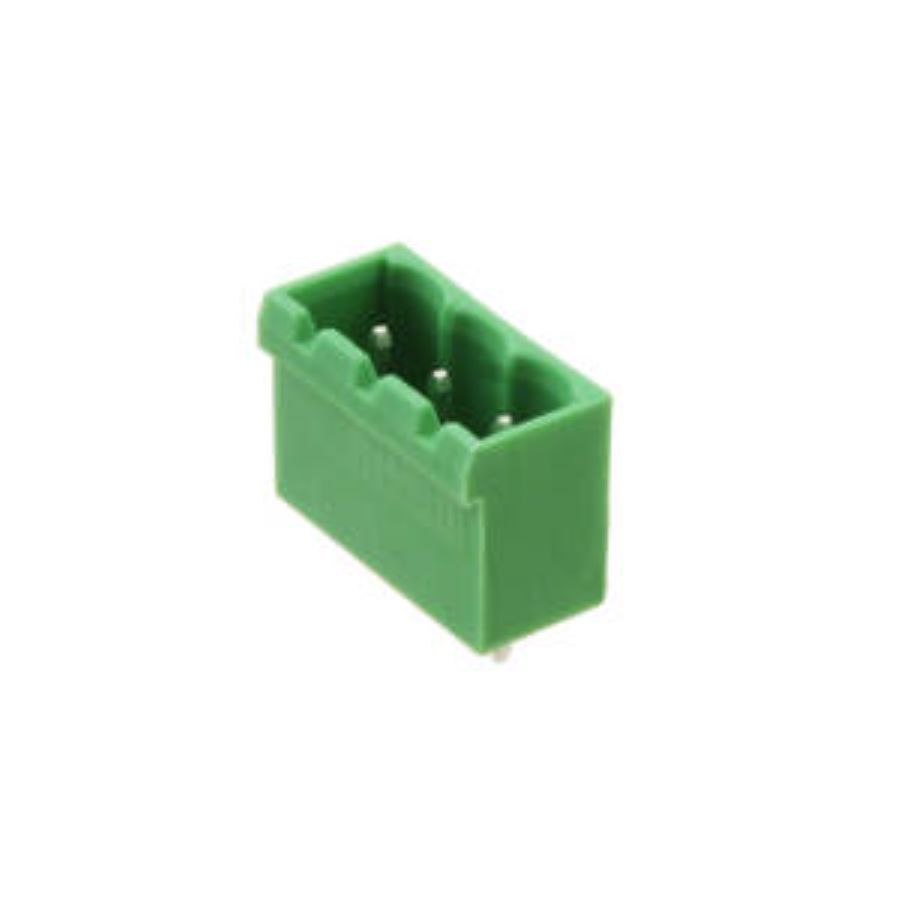

1755749
Manufacturer:
Phoenix Contact
Mfr.Part #:
1755749
Datasheet:
Description:
Terminal Blocks Through Hole 3 5.08 mm 12 A 300 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 5.08 mm |
| Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Color | Green |
| Gender | Male |
| Number of Contacts | 3 |
| Mounting Style | Through Hole, Solder, PCB |
| lead free status | Lead Free |
| rohs status | Compliant |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| size width | 8.60 mm |
| size length | 17.2 mm |
| size height | 12.0 mm |
| voltage rating dc | 250 V |
| voltage rating ac | 250 V |
| Housing Color | Green |
| pin pitch | 5.08 mm |
| Connection Method | Plug |
| Current Rating (IEC) | 12 A |
| Voltage Rating (IEC) | 250 V |
Stock: 879
Distributors
pcbx
pcbxUnit Price$0.50246
Ext.Price$0.50246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50246 | $0.50246 |
| 10 | $0.38899 | $3.88990 |
| 25 | $0.35803 | $8.95075 |
| 50 | $0.32954 | $16.47700 |
| 100 | $0.30331 | $30.33100 |
| 300 | $0.27917 | $83.75100 |
| 500 | $0.25695 | $128.47500 |
| 1000 | $0.24008 | $240.08000 |
